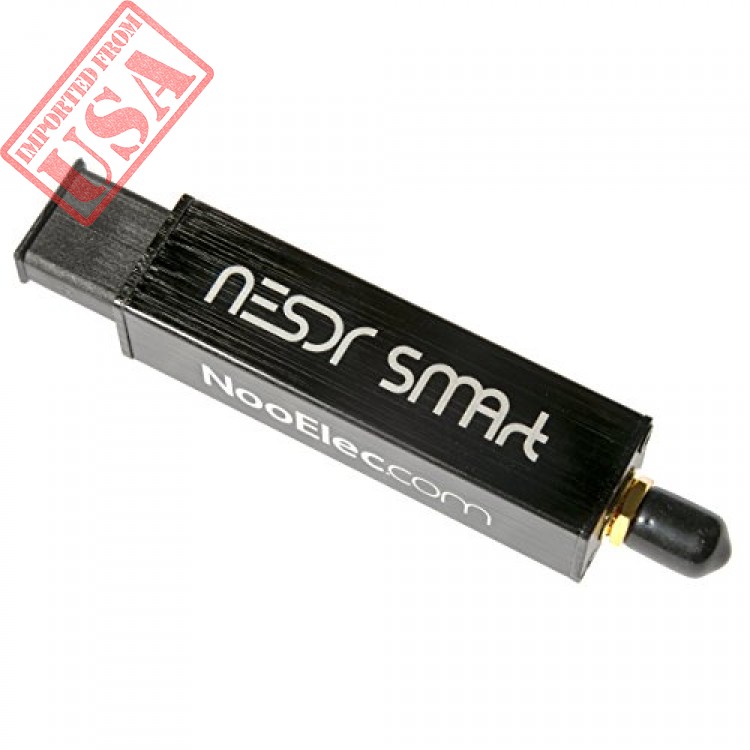

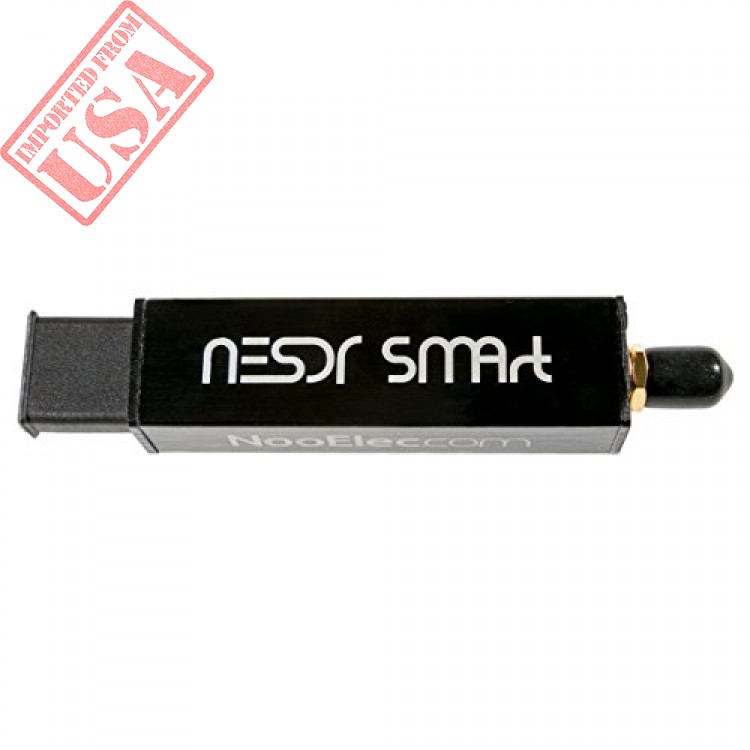

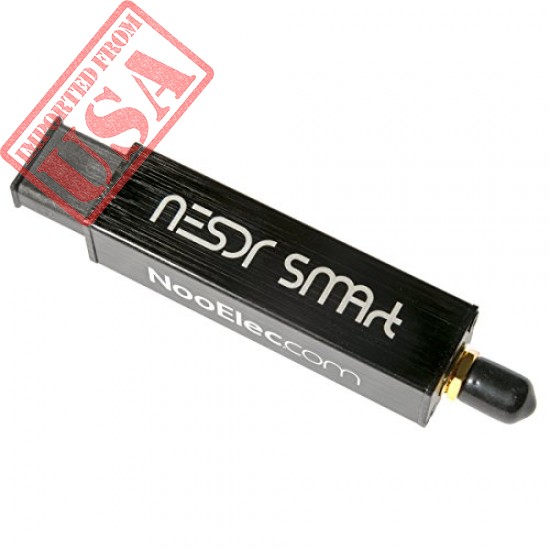

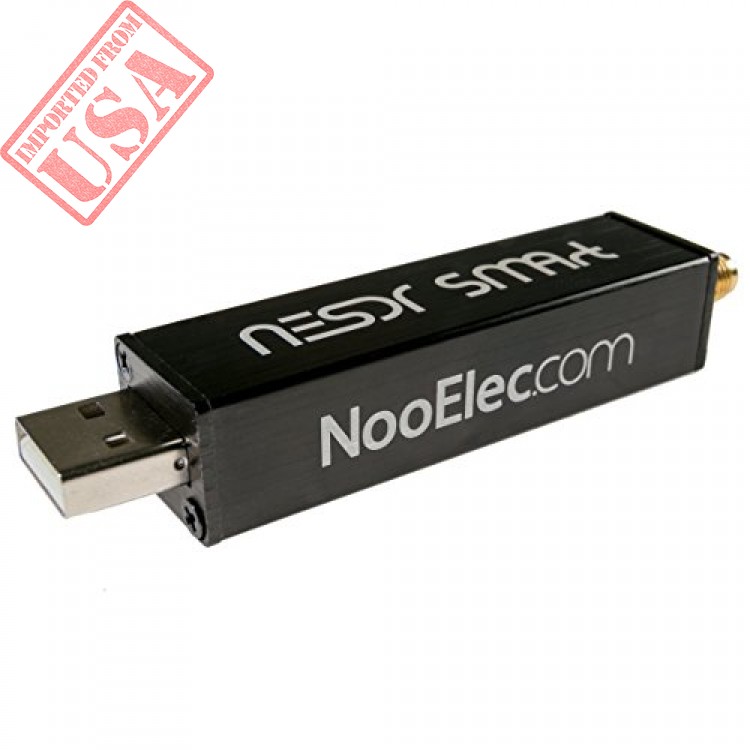

NooElec NESDR Smart - Premium RTL-SDR w/Aluminum Enclosure, 0.5PPM TCXO, SMA Input. RTL2832U & R820T2-Based Software Defined Radio
You spoke, we listened! This premium RTL-SDR was designed, developed and fabricated by NooElec in the USA and Canada in order to implement a wide array of feature requests.
For full product specifications, please visit our website at nooelec.com
Included:
✔ NESDR SMArt SDR in black brushed aluminum enclosure
SDR Specifications:
✔ RTL2832U Demodulator/USB interface IC
✔ R820T2 tuner IC
✔ 0.5PPM, ultra-low phase noise TCXO
✔ RF-suitable voltage regulator
✔ Shielded primary inductor
✔ Integrated custom heatsink

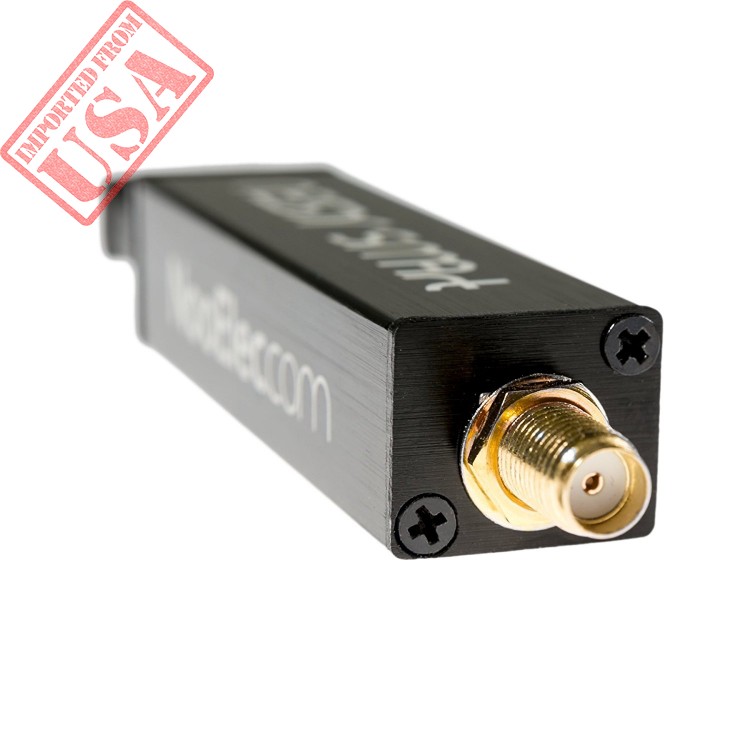

✔ Female SMA antenna input
✔ High-quality black brushed aluminum enclosure
✔ Through-hole direct sampling pads on PCB
TCXO Specifications:
✔ Frequency stability: 0.5PPM (max)
✔ Phase noise @1kHz offset: -138dBc/Hz (or better)
✔ Phase noise @10kHz: -150dBc/Hz (or better)
✔ Phase noise @100kHz: -152dBc/Hz (or better)
Product Feature
Premium Software Defined Radio 'NESDR SMArt' in a beautiful brushed aluminum enclosure. Proudly built by NooElec in the USA and Canada! Full 2-year product warrantyA wide variety of improvements on other designs, including ultra-low phase noise 0.5PPM TCXO, RF-suitable voltage regulator, custom heatsink, 2 silicone pads and SMA female connector

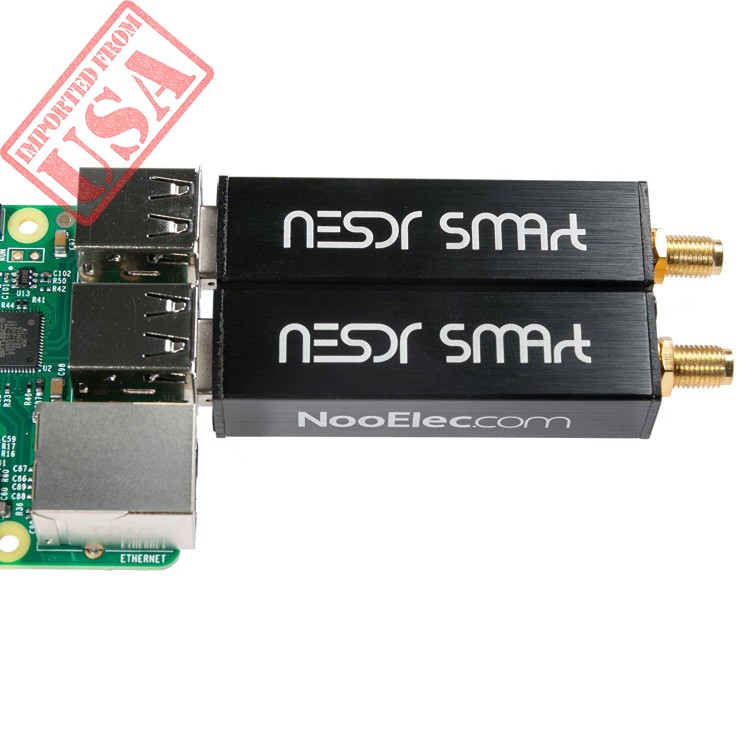

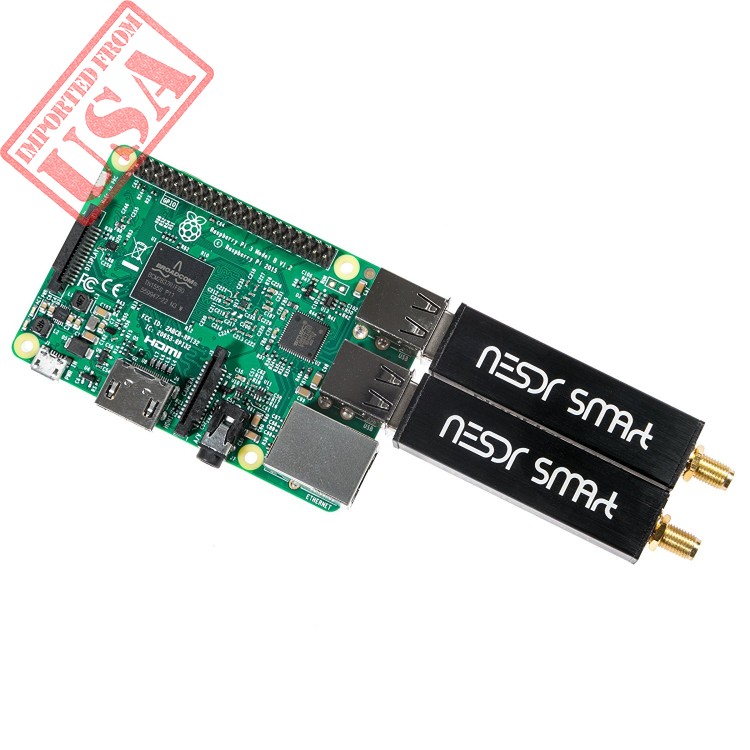

Designed from the ground up to reduce USB port occlusion. Run multiple NESDR SMArt side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi
SDR frequency capability approximately 25MHz-1700MHz. Frequency range can be extended down to 100kHz or lower with the Ham It Up, also available on Amazon (B009LQT3G6)
An 8pc SMA adapter set and carrying case is also available on Amazon (Product ID B073JT98RR)
Product Information
| Product Dimensions | 3.9 x 3.9 x 35.4 inches |
|---|---|
| Shipping pack Dimensions | 4.7 x 31.5 x 52 inches |
| Shipping pack weight | 0.07 pounds |
| Binding | Personal Computers |
| Manufacturer | NooElec Inc. |
| Model | NESDR SMArt SDR |
| Studio | NooElec Inc. |
| Product Group | PC Accessory |
| Publisher | NooElec Inc. |
| Package Quantity | 1 |
| Part Number | 100701 |
| MPN | 100701 |
| EAN List | 0616469145864 |
| UPC List | 616469145864 |
